Installation and configuration of Reservation

Download

Download reservation.zip from here.

In case of PageBox installation, publish reservation.zip on the constellation repository.

In case of stand-alone installation, deflate reservation.zip.

Then in both cases follow the two steps below.

Table creation

  1. Create the Reservation database. In case of SQL server you can use the Enterprise Manager. You can also reuse an existing database if it doesn’t already contains tables named users, resources, resources_info, currentUserNo, bookings and applications.

  2. Run the reservation.sql script to create the tables in the database. In case of SQL server you can use the Query tool.

Configuration

The configuration file must be named reversation.xml and be stored in the same directory as Reservation pages.

We give two examples of configuration file:

  • reservation-sql.xml for SQL server

  • reservation-access.xml for Access

Here is reservation-sql.xml:

<reservation>

<archive>reservation.zip</archive>

<connection-string>Provider=sqloledb;Data Source=(local);User Id=sa;Password=gunnm007;Initial Catalog=reservation</connection-string>

<pagebox>http://localhost/PageBox/PageBox/Query.asmx</pagebox>

<smtp-server>mail.libertysurf.fr</smtp-server>

<user>config</user>

<password>config</password>

<address>Chemin de la Font des Fades</address>

<city>Mouans Sartoux</city>

<state></state>

<zip>06370</zip>

<country>FR</country>

<region>Europe</region>

<latitude>N:44:11.111</latitude>

<longitude>E:6:22.222</longitude>

</reservation>

All elements must be defined. The last column states if an element must be set.

Element name

Mandatory

archive

Reservation queries the PageBox repository for subscribers to this archive. Normally reservation.zip.

yes

connection-string

OLE DB connection string. You can need to change the data source, the database name, the user and the password.

yes

pagebox

URL of the Query Web service of the managing PageBox

no

smtp-server

SMTP server to use to send mails to customers (Register and Retrieve)

yes

user

Configuration user. This account is used primarily to create the first employee account.

yes

password

Configuration password

yes

address

Address of the Reservation instance owner

no

city

City of the Reservation instance owner

yes (*)

state

State code of the Reservation instance owner (USA and Canada)

no

zip

Zip code of the Reservation instance owner

yes (*)

country

Country code of the Reservation instance owner

yes (*)

region

Region of the Reservation instance owner (for instance Europe or North Am)

yes (*)

latitude

Latitude of the Reservation instance owner in N|S:dd:mm.mmm format

no

longitude

Longitude of the Reservation instance owner in E|W:dd:mm.mmm format

no

(*) Should be set if pagebox is set and if Reservation was installed by PageBox.

Post-installation

Configure Reservation as an Application on the Internet Information Services MMC.

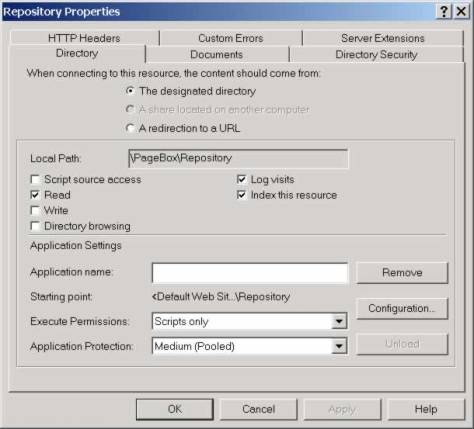

To do that, select the Reservation directory, click right and select Properties. Click on the Create (application) button on the Directory panel. You should get this:

At the bottom of the Directory properties there is a section named Application Settings. The Application name must be enabled and you should see a Remove button on the right
