Embedded Server version



Deployment of Web archive in embedded (OSGi) PageBox

Steps:

  1. You install JSPservlet on your presentation servers and you store your Web Archives on a Web Server.
    The presentation server is an Open Service Gateway Initiative (OSGi) service framework.
    We focused on Sun JES 2 but you should be able to port JSPservlet on other OSGi service frameworks.
    The only requirement is a J2SE JVM.

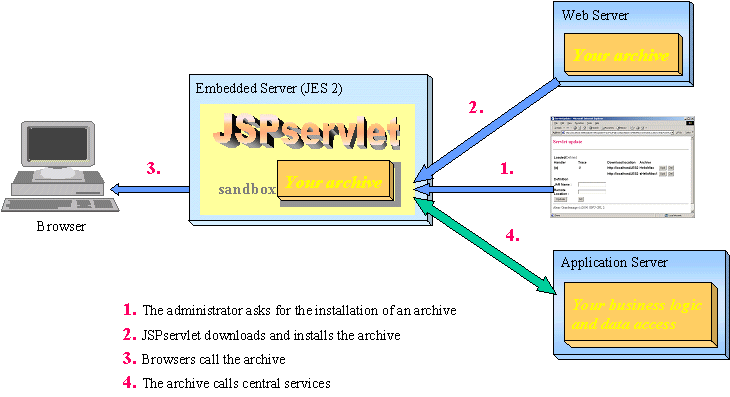

  2. Then you trigger the deployment of the Web Archives on the presentation servers using an administration servlet of JSPservlet. Then it works as depicted on the figure.
Your Web Archives run on the same JVM but they are loaded by independent class loaders and can run in sandboxes. You can see JSPservlet as an applet container for Web Archives. The only difference is JSPservlet updates an archive only when requested by the administrator.

You can browse its documentation and its JavaDoc for more information.

Download version 1.0.2

Sources .zip .tar.gz
Product for JES 2
If you want to use JSP taglibs you also need a bundle we made to wrap Tomcat tagext.
The source is a minimal activator. You can download the pre-packaged bundle here.

Documentation

PDF
Word
Html .zip, .tar.gz
JavaDoc .zip, .tar.gz
